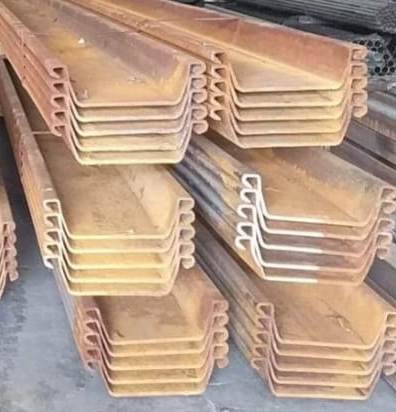

SHEET PILES
Sheet Pile is used in construction and excavation sites where earth retention and excavation support is needed to hold back soil either temporarily or permanently.
Sheet Pile is often used to support excavation for basements, below ground parking structures, foundations, pump houses. It is also a sustainable option at excavation sites because they are reusable multiple times. More permanent uses of sheet pile are in seawalls and bulkheads.
Available in the following:
- Type 2
- Type 3
- Type 4
- Z-type
- U-type
Width | Height | Thickness | Section Area | Weight | Weight | Moment of Inertia | Section Modulus |
mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m |
770 | 344 | 8.5 | 120 | 72.6 | 94.2 | 21413 | 1302 |
700 | 314 | 8.5 | 122.7 | 67.4 | 96.3 | 18889 | 1202 |
770 | 344 | 9 | 125.0 | 75.6 | 98.1 | 22579 | 1312 |
700 | 315 | 9.5 | 134.6 | 74 | 105.7 | 20537 | 1303 |
770 | 345 | 9.5 | 131.1 | 79.3 | 102.9 | 23396 | 1355 |
700 | 316 | 10.3 | 146.1 | 80.3 | 114.7 | 22258 | 1407 |
700 | 420 | 8.5 | 133 | 73.1 | 104.4 | 37135 | 1767 |
700 | 420 | 9 | 139.2 | 76.5 | 109.3 | 37991 | 1808 |
580 | 580 | 16 | 322.2 | 146.7 | 252.9 | 145656 | 5022 |
600 | 150 | 8.5 | 119.7 | 56.4 | 94 | 3800 | 508 |
600 | 150 | 9.5 | 135.7 | 63.9 | 106.5 | 4162 | 554 |
600 | 300 | 6 | 92.9 | 43.7 | 72.9 | 10508 | 700 |
600 | 355 | 7 | 111.7 | 52.6 | 87.7 | 16823 | 947 |
400 | 100 | 10.5 | 61.18 | 48.0 | 120 | 8740 | 874 |
400 | 125 | 13.0 | 76.42 | 60.0 | 150 | 16800 | 1340 |
400 | 170 | 15.5 | 96.99 | 76.1 | 190 | 38600 | 2270 |
770 | 343.5 | 8.6/8.5 | 120.8 | 72.8 | 94.5 | 21496 | 1252 |
770 | 344.5 | 9.6/9.5 | 132.2 | 79.6 | 103.4 | 23370 | 1357 |
